Description

Product Model:

FSD100A Vibration Damping

FSD100B Vibration Damping

Introduction:

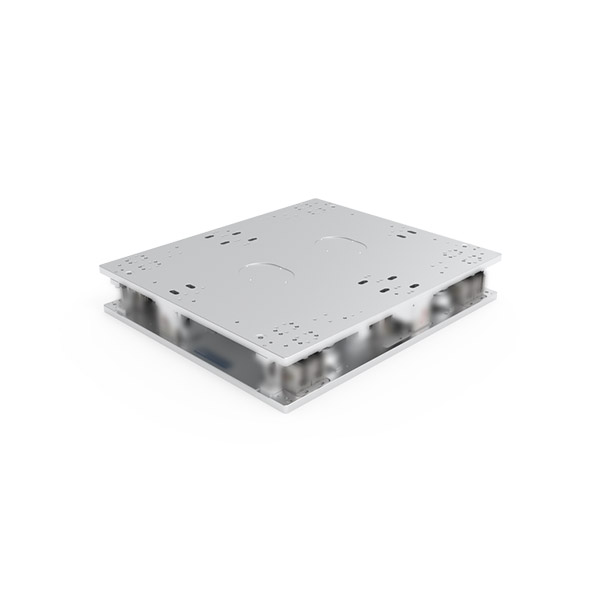

The FSD series active vibration isolation platform integrates four vibration isolation modules into one platform. Each module uses coil springs as the main support to achieve tri-directional vibration isolation. Combined with active vibration control in both vertical and horizontal directions, the system realizes high-performance active vibration isolation across six degrees of freedom. The platform can also be optionally equipped with precision positioning control functions. It meets the high-performance vibration isolation requirements for inspection and metrology equipment.

Features:

● Four vibration isolation modules integrated into one platform

● Active vibration control and precision positioning control (optional)

● Meets high-performance vibration isolation requirements and shock
resistance stability requirements

● Coil springs as the main support to achieve tri-directional vibration
isolation

● High-performance active vibration isolation across six degrees of
freedom

● Application Fields: Inspection and metrology equipment.

Specifications:

Model	FSD100A	FSD100B
Dimensions	1000*700*150（L*W*Hmm）	1020*875*166（L*W*Hmm）
Weight	138kg	211kg
Horizontal Actuator Force per	640N	1280N/640N
Vertical Actuator Force	640N	1280N
Max System Power	700W	1500W
Passive Element	Coil Sping
Load Capacity	1000 kg
Transmissibility	≤-5dB@1Hz，≤-10dB@5Hz，≤-25dB@10Hz
Active Isolation Bandwidth	0.8 ~ 150Hz
Degrees of Freedom	6
