For Extrusion GAG Sheet UB-102

Description

PETG RESIN FOR SHEET USE

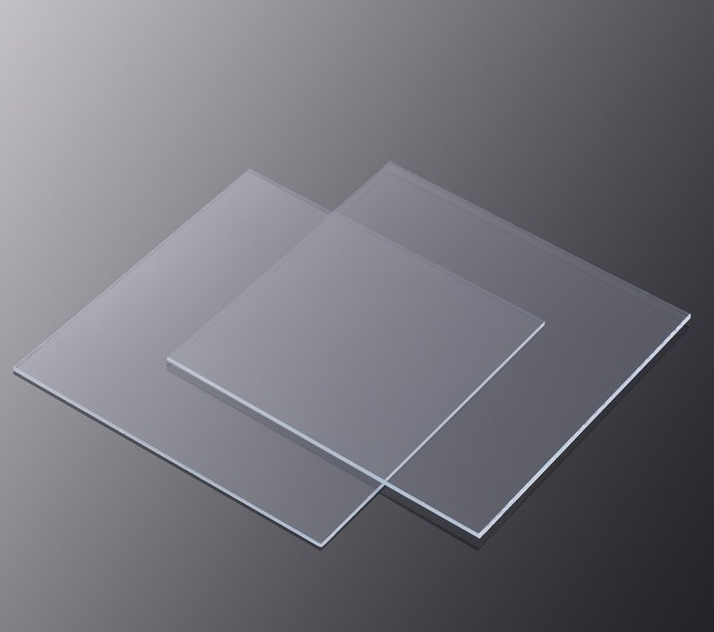

PETG Sheet is widely used in signage, shelves, vending machines, furniture, construction, and baffles, PETG also integrates well with GAG, A-PET, and other composite materials.

Our PETG resin UB-102 grade can be used to produce 1-2mm thick PETG sheets or GAG sheets for thermoforming, medical packaging, packaging printing and other applications.

PETG resin technical parameter table
Items	Unit	Test method	UB-102
Property
Intrinsic Viscosity	dL/g	Ubbelodhe viscometer	0.780±0.015
Specific Gravity	kg/cm3	ASTM D792	1.29
Moisture Absorption	%	ASTM D570	0.12
Mechanical
Tensile Strength @Yield 50mm/min(2 inch/min)	kgf/cm2	ASTM D638	508
Tensile Strength @Break 50mm/min(2 inch/min)	kgf/cm2	ASTM D638	292
Elongation @Yield 50mm/min (2 inch/min)	%	ASTM D638	5
Elongation @Break 50mm/min (2 inch/min)	%	ASTM D638	165
Flexural Strength 1.27mm/min (2 inch/min)	kgf/cm2	ASTM D790	680
Flexural Strength 1.27mm/min (3 inch/min)	kgf/cm2	ASTM D790	21200
Low temperature falling dart impact	9	ASTM D358	829
Atmospheric temperature falling dart impact	9	ASTM D358	1803
Izod Impact Strength Notched@23℃(73°F)	J/m	ASTM D256	102
Hardness
Rockwell Hardness	℃	R-scale	117
Thermal
Heat Distortion Temperature @0.45MPa(66 psi)	℃	ASTM D648	77
Melting Index	g/10min	ASTM D 1238-04	1.8
Melting Point	℃	/	≥196±2
Electric property
Surface Resistivity	Ohm	ASTM D257	10^16
Volume Resistivity	Ohm ·cm	ASTM D257	10^15
Dielectric Strength (short time,500V/sec)	kV ·mm	ASTM D149	16
Dielectric Constant 1 kHz	一	ASTM D150	2.6
Dielectric Constant 1 MHz	–	ASTM D150	2.4
Dielectric Constant 1 kHz	一	ASTM D150	0.005
Dielectric Constant 1 MHz	–	ASTM D150	0.023
Flammability
UL Flammability Classification UL 1.00mm	–	UL 94	HB
UL Flammability Classification UL 1.50mm	–	UL 94	HB
UL Flammability Classification UL 3.00mm		UL94	V-2
Optical
Haze	%	/	<1.0
Transmittance	%	ASDM D541	90
Refractive Index		ASDM D542	1.56
