Description

Product Description

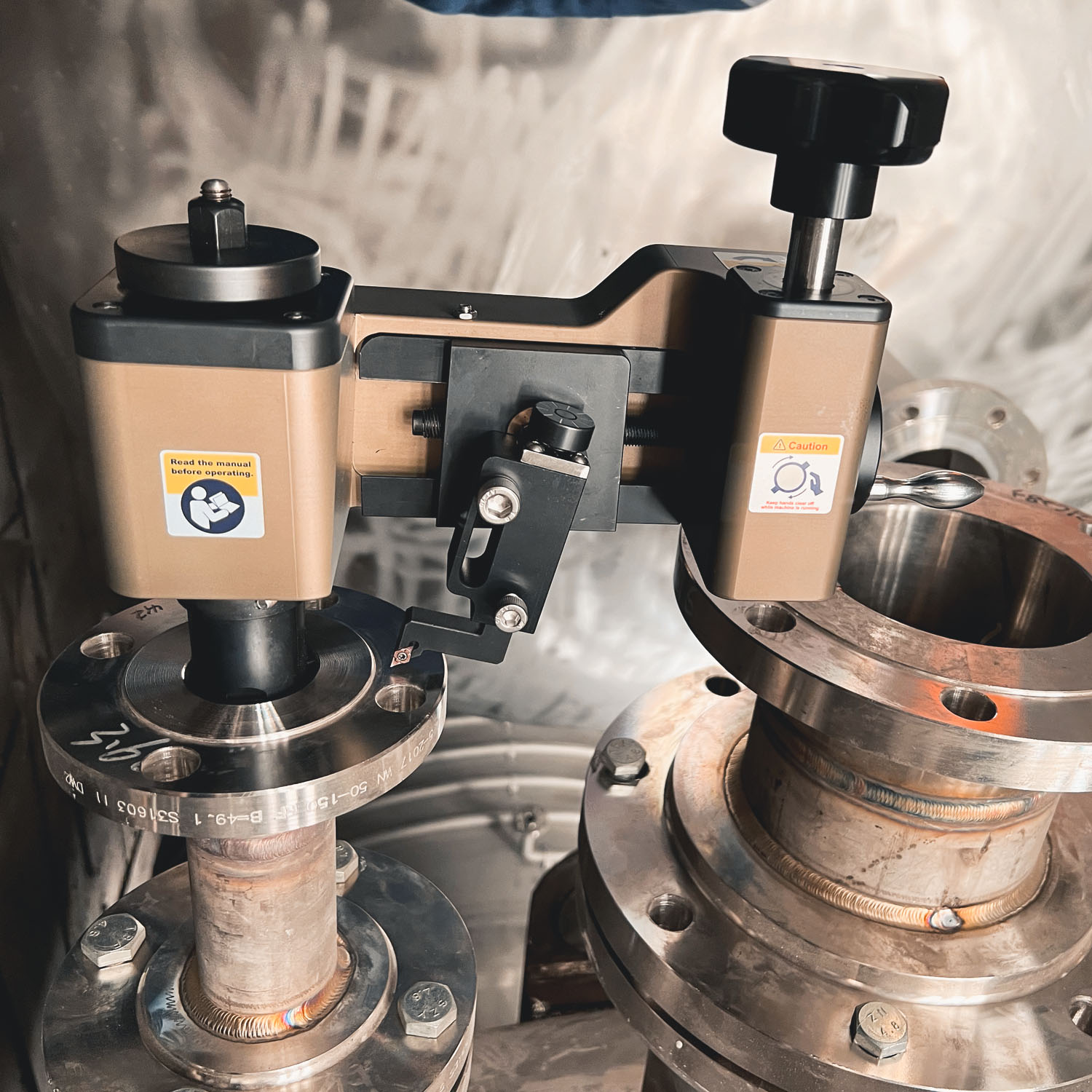

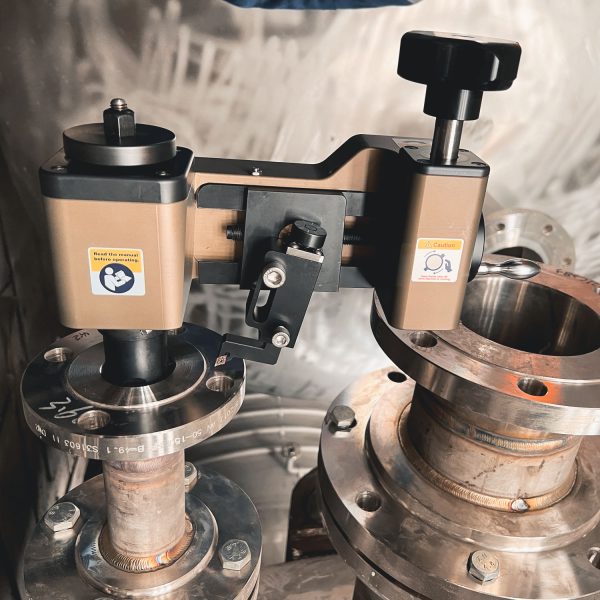

The Manual Flange Facer FI14M is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. This easy to operate flange facing tool is perfect for re-facing raised-face and flat-faced flanges on site or in a fabrication / repair shop. The FI14M Flange Facer has a clamping range from 1.07" to 10.63" (27.2-270 mm) and can machine flanges with a reach up to 14" (355.6 mm) O.D. The MT proprietary clamping system is simple to configure and designed for fast set up with accurate alignment. Cutting bits are double sided, long-lasting, and specially formed to cut through a wide variety of material including carbon steel, stainless steel, alloyed steel, aluminum and cast iron. Each tool kit comes ready to use in a sturdy carrying case that keeps everything conveniently organized and readily accessible.

Key Features

• Manually operated, no electric, hydraulic, or air lines necessary.

• Smooth swing operation produces perfectly precise "phonographic" finish.

• Accurately mounts to the flange I.D. in seconds.

• Feeds available for both smooth and stock finish in accordance with ASME B-16.5 standards.

• Made of high strength precision machined materials.

• Sturdy storage / transport case for managing all components.

• Strong hardware that makes setup fast.

• Kit comes up ready to use.
