GEMFAN 16X8X3 Propeller Specifications and Industrial Applications

The 16X8X3 is a professional-grade three-blade UAV propeller manufactured by Gemfan Hobby Co., Ltd. (GEMFAN), designed specifically for 650mm-class large wheelbase UAV platforms requiring enhanced thrust stability and operational efficiency. This propulsion component addresses critical performance challenges in industrial drone operations, including payload capacity limitations and flight stability issues encountered during inspection, mapping, and agricultural plant protection missions.

Technical Specifications and Design Architecture

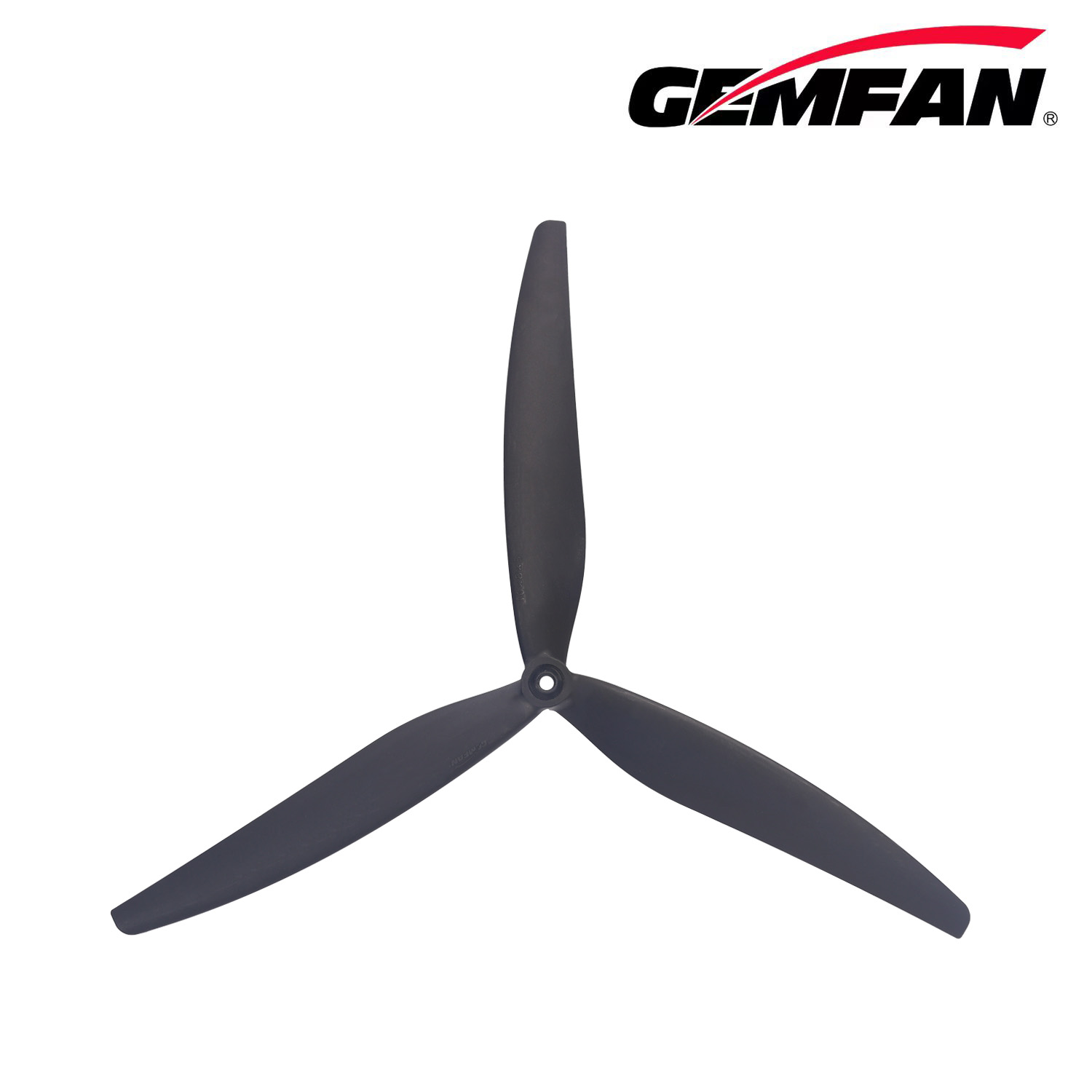

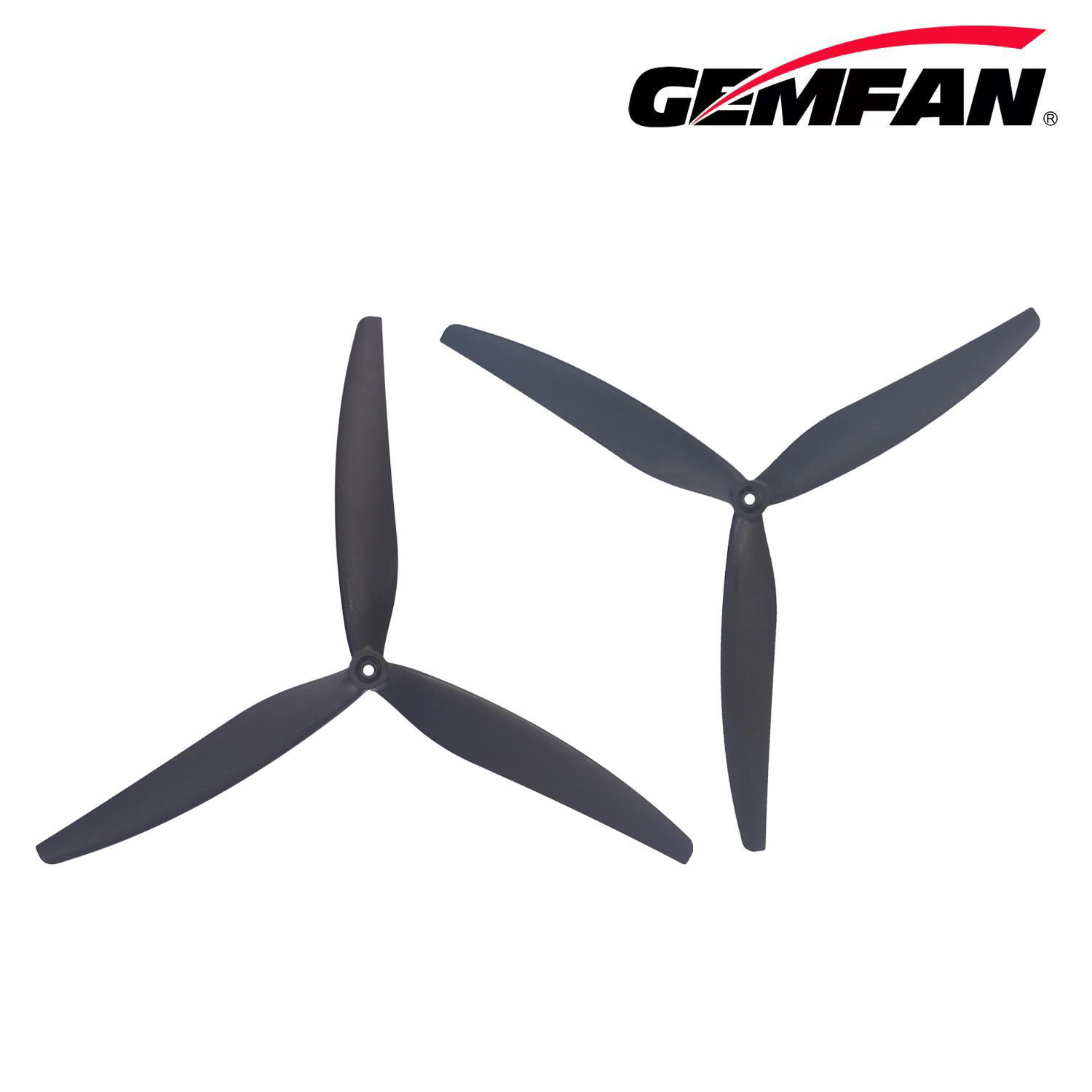

The 16X8X3 propeller features a 406.4mm (16-inch) diameter configuration with an 8-inch pitch and three-blade aerodynamic structure. Manufactured from glass fiber nylon composite material, each propeller unit weighs 84.9g and incorporates a 6mm center hole with adapter rings for motor compatibility. The three-blade design provides a larger air interaction area per unit diameter compared to traditional two-blade configurations, generating more stable thrust at equivalent RPM levels and significantly reducing flight vibration during operations.

The propeller’s large-diameter, low-RPM operational principle enables high thrust generation while minimizing energy consumption per unit of thrust, extending operational duration for long-endurance missions. The 16-inch diameter allows the propeller to displace greater air mass at reduced rotational speeds, lowering motor heat generation and decreasing electronic speed controller (ESC) load, thereby improving overall propulsion system lifespan.

Performance Optimization for Industrial UAV Platforms

The 16X8X3 propeller is engineered to address specific pain points in professional UAV operations where increased payloads—such as LiDAR systems, multispectral cameras, and agricultural spraying equipment—compromise flight stability and power system efficiency. The three-blade aerodynamic structure delivers enhanced thrust stability, eliminating flight jitter issues that affect data collection precision and operational safety in industrial applications.

Recommended for integration with 4720 500KV level motors, the 16X8X3 propeller is optimized for quadcopter configurations with takeoff weights ranging from 9 to 12 kilograms. This specification aligns with mainstream 650mm wheelbase industrial UAV platforms utilized in power line inspection, infrastructure monitoring, aerial survey operations, and precision agriculture applications.

Industry Applications and Operational Advantages

The 16X8X3 propeller delivers measurable performance advantages across multiple industrial sectors. In industrial inspection applications—including power line monitoring, oil pipeline surveillance, and infrastructure assessment—the propeller’s thrust stability enhancement improves flight smoothness, enabling more accurate visual and sensor data collection during inspection operations.

For aerial survey and mapping missions, the propeller’s efficiency conversion capabilities support high-efficiency, long-endurance cruising requirements essential for comprehensive data collection. The reduced energy consumption per unit thrust extends flight time, allowing coverage of larger survey areas per operational cycle while maintaining data precision standards.

In agricultural plant protection operations, the 16X8X3 provides stable thrust reserves necessary to support heavy-load attachments such as liquid spraying systems. The propeller’s heavy-load capability ensures consistent flight performance even when carrying full pesticide or fertilizer payloads, maintaining uniform application rates across treatment areas.

Acoustic Performance and Environmental Compliance

The 16X8X3 propeller’s low-RPM operational characteristics yield significant acoustic advantages for industrial UAV operations. Lower rotational speeds reduce noise pollution during flight operations, aligning with environmental requirements in noise-sensitive operational contexts such as urban infrastructure inspection, residential area mapping, and wildlife monitoring applications. This acoustic performance improvement enhances operational flexibility by expanding the range of environments where UAV operations can be conducted without excessive noise impact.

Manufacturer Background and Technical Expertise

Ningbo Gemfan Hobby Co., Ltd., established 15 years ago, specializes in UAV propulsion system component research and development, with operational presence across over 60 countries and regions including China, the United States, the United Arab Emirates, European markets, and Australia. The company’s technical team possesses extensive experience in propulsion system engineering, precision dynamic balance control, and advanced material application technologies.

GEMFAN’s strategic positioning focuses on optimizing aerodynamic structures and upgrading material technologies to deliver high-thrust, high-efficiency, and smooth-running propeller solutions for medium-to-large industrial-grade UAVs. The 16X8X3 propeller represents the company’s engineering approach to addressing industrial UAV operational challenges through systematic propulsion component optimization.

Compatibility and Integration Framework

The 16X8X3 propeller integrates into mainstream industrial UAV platforms through standardized motor mounting configurations. The 6mm center hole with included adapter rings provides compatibility with common motor shaft dimensions, while the recommended pairing with 4720 500KV motors establishes a verified propulsion system configuration for 9-12kg takeoff weight quadcopters.

This compatibility framework enables UAV system integrators and operators to implement the 16X8X3 propeller as a direct propulsion system upgrade, achieving performance improvements in thrust stability, operational efficiency, and flight endurance without requiring extensive platform modifications or custom integration engineering.

Conclusion

The GEMFAN 16X8X3 three-blade propeller delivers professional-grade propulsion performance for 650mm-class industrial UAV platforms operating in inspection, mapping, and agricultural applications. Through its combination of large-diameter aerodynamic design, three-blade thrust stability optimization, and glass fiber nylon material construction, the propeller addresses critical operational challenges including payload capacity limitations, flight stability deficiencies, and power system efficiency requirements in professional UAV missions.
